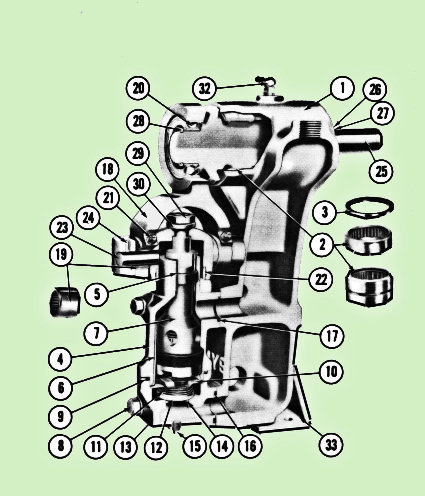

| Reference Number |
Description of Part Number |
Quantity Required |
Part Number |
| 1 |
Air chamber |
1 |
20384C |
| 2 |
Bearing, roller for air chamber |
2 |
15514A2 |
| 4 |
Cylinder body with stainless steel liner |
1 |
11423C3 |
| 5 |
Cylinder liner, upper |
1 |
11423C11A |
| 6 |
Cylinder liner, lower |
1 |
11423C12A |
| N/A 7 |
Plunger assembly, serial no. 1159 |
1 |
11424A3
n/a |
| N/A 7 |
Plunger assembly, serial no. 165 |
1 |
18004A n/a |
| 7 |
Plunger assembly, serial no. 1265 |
1 |
18460A |
| 8 |
Screw, cap |
4 |
19101A34 |
| 9 |
O-ring |
1 |
5876A17 |
| 10 |
Retainer for suction valve |
1 |
11431A |
| 11 |
Spring for suction valve |
1 |
11432A |
| 12 |
Suction valve |
1 |
17714A1 |
| 13 |
Lower cap with stainless steel seat |
1 |
20494B10 |
| 14 |
Seat, stainless steel |
1 |
M2168A2 |
| N/A |
Screw, lower cap to cylinder body |
2 |
19101A18 |
| 15 |
Pipe plug |
1 |
5022A4 |
| N/A |
Link assembly with crosshead |
1 |
11435B2 |
| 18 |
Link and bearing assembly |
1 |
17041B022 |
| 19 |
Needle bearing for link |
2 |
14382A3 |
| 20 |
Bearing |
1 |
5775A15 |
| 21 |
Grease fitting |
2 |
18260A |
|
Crosshead with bushing |
1 |
11436B1 |
| 22 |
Bushing, for crosshead |
1 |
5806A11 |
|
Grease fitting |
1 |
13047A |
| 23 |
Pin for link |
2 |
11437A1 |
| 24 |
Roll pin |
2 |
10789A12 |
| 25 |
Shaft, pulley driven |
1 |
17437B |
| 26 |
Washer, for pulley end of shaft |
1 |
5030A64 |
| 27 |
Retaining ring, for pulley end of shaft |
1 |
10848A8 |
| 28 |
Retaining ring, link bearing end |
1 |
10848A3 |
| 29 |
Nut, plunger to crosshead |
1 |
19109A35 |
| 30 |
Lockwasher, 1/2" |
1 |
5454A4 |
| 31 |
Pipe plug |
1 |
5022A19 |
| 32 |
Grease fitting |
1 |
5725A |
|
Pipe plug, 1/2" socket |
2 |
5022A15 |
| 33 |
Base, for pump |
1 |
11481B |
|
Screw, pump to base |
2 |
19101A7 |
|
Washer, 11/32"ID 1"OD 1/16" thick |
2 |
5030A7 |
|
Lockwasher, 3/8" |
2 |
5454A7 |
|
Parts kit |
1 |
14232A1 |
|
Parts kit |
1 |
14232A2 |
