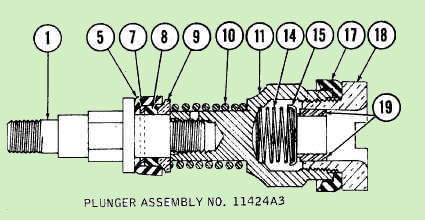

| Reference Number | Description of Part Number | Quantity Required | Part Number |
| 1 | Plunger stem or casting | 1 | 17038A |
| 5 | Plunger cup, upper | 1 | 6737A13 |
| 7 | Washer or spacer | 1 | 12582A |
| 8 | Expander, rubber | 1 | 5014A122 |
| 9 | Gland washer | 1 | 11557A |
| 10 | Spring to expand upper plunger cup | 1 | 5956A |
| 11 | Plunger cage | 1 | 17039B |
| 14 | Spring for plunger valve | 1 | 11429A |
| 15 | Valve for plunger | 1 | 60277A |
| 17 | Plunger cup, lower | 1 | 6737A16 |
| 18 | Follower with stainless steel seat | 1 | 11403A2 |
| 19 | Seat, stainless steel for follwer | 1 | 13734A |
