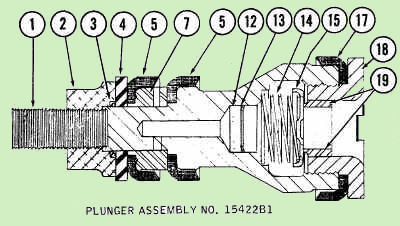

| Reference Number | Description of Part Number | Quantity Required | Part Number |
| 1 | Plunger stem or casting | 1 | 15423B |
| 2 | Nut, follower | 1 | 15424A |
| 3 | O-ring | 1 | 5876A68 |
| 4 | Washer | 1 | 5030A110 |
| 5 | Plunger cup, upper | 2 | 6737A21 |
| 7 | Spacer for upper plunger cup | 1 | 15425A |
| 12 | Fiber disc | 1 | 7227A10 |
| 13 | Retaining rind | 1 | 15233A2 |
| 14 | Spring for plunger valve | 1 | 11432A |
| 15 | Valve for plunger | 1 | 17714A1 |
| 17 | Plunger cup, lower | 1 | 6737A20 |
| 18 | Follower with stainless steel seat | 1 | 15462A1 |
| 19 | Seat, stainless steel for follower | 1 | M2168A2 |
