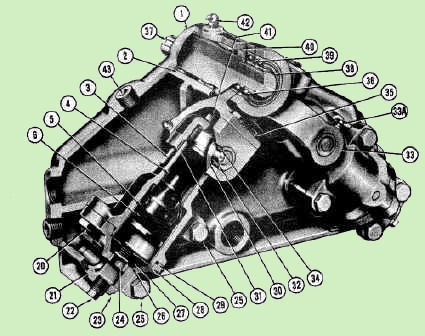

| Reference Number |
Description of Part Number |
Quantity Required |
Part Number |
| 1 |
Air chamber |
1 |
15411D |
| |
Spacer |
1 |
21310A |
| |
Pin, Roll |
1 |
10789A34 |
| 2 |
Roller bearing for air chamber |
2 |
15514A1 |
| 3 |
Cylinder body w/ stainless steel liners |
2 |
15427C1 |
| 4 |
Cylinder liner, upper |
2 |
15427C2A |
| 5 |
Cylinder liner, lower |
2 |
15427C3A |
| 6 |
Plunger assembly |
2 |
15422B1 |
| 20 |
Cap screw |
6 |
19103A1 |
| 21 N/A |
O-ring / Use 5876A53 |
2 |
5876A80 |
| N/A |
O-ring / Use 5876A68 |
2 |
5876A79 |
| 22 |
Pipe Plug |
2 |
5022A20 |
| 23 |
Lower cap with stainless steel seat |
2 |
15428B1 |
| 24 |
Seat, stainless steel, for lower cap |
2 |
M2168A2 |
| 25 |
Cap screw |
8 |
19103A21 |
| 26 |
Suction valve |
2 |
17714A1 |
| 27 |
Spring for suction valve |
2 |
11432A |
| 28 |
Retainer for suction valve |
2 |
15429A |
| 29 N/A |
O-ring / Use 5876A52 |
2 |
5876A81 |
| 30 |
Crosshead |
2 |
15420B1 |
| 31 |
Bearing for crosshead |
2 |
5806A27 |
| 32 |
Bearing race for crosshead |
4 |
15421A1 |
| 32A |
Grease fitting |
2 |
5725A |
| 33 |
Link complete |
2 |
15417B3 |
| 33A |
Grease fitting |
4 |
13047A |
| 34 |
Needle bearing for link |
4 |
15418A3 |
| 35 |
Cap screw |
4 |
19101A44 |
| N/A |
Sealant loctite removable |
|
14550A2 |
| 36 |
Ball bearing for link |
2 |
5775A15 |
| 37 |
Shaft, drive, solid shaft |
1 |
17504B |
| 38 |
Retaining ring |
1 |
10848A3 |
| 38A |
Spacer |
1 |
21310A |
| 38B |
Pin, roll |
1 |
10789A34 |
| 39 |
Washer |
1 |
5030A73 |
| 40 |
Thrust washer |
1 |
5030A111 |
| |
Washer, steel, for pulley end of shaft |
1 |
5030A87 |
| |
Retaining ring, for pulley end of shaft |
1 |
10848A8 |
| 41 |
Nut |
2 |
19109A48 |
| 42 |
Grease fitting |
1 |
5725A |
| 43 |
Pipe plug |
4 |
5022A15 |
| |
Pipe plug, 3/4", electro plated |
1 |
5022A19 |
